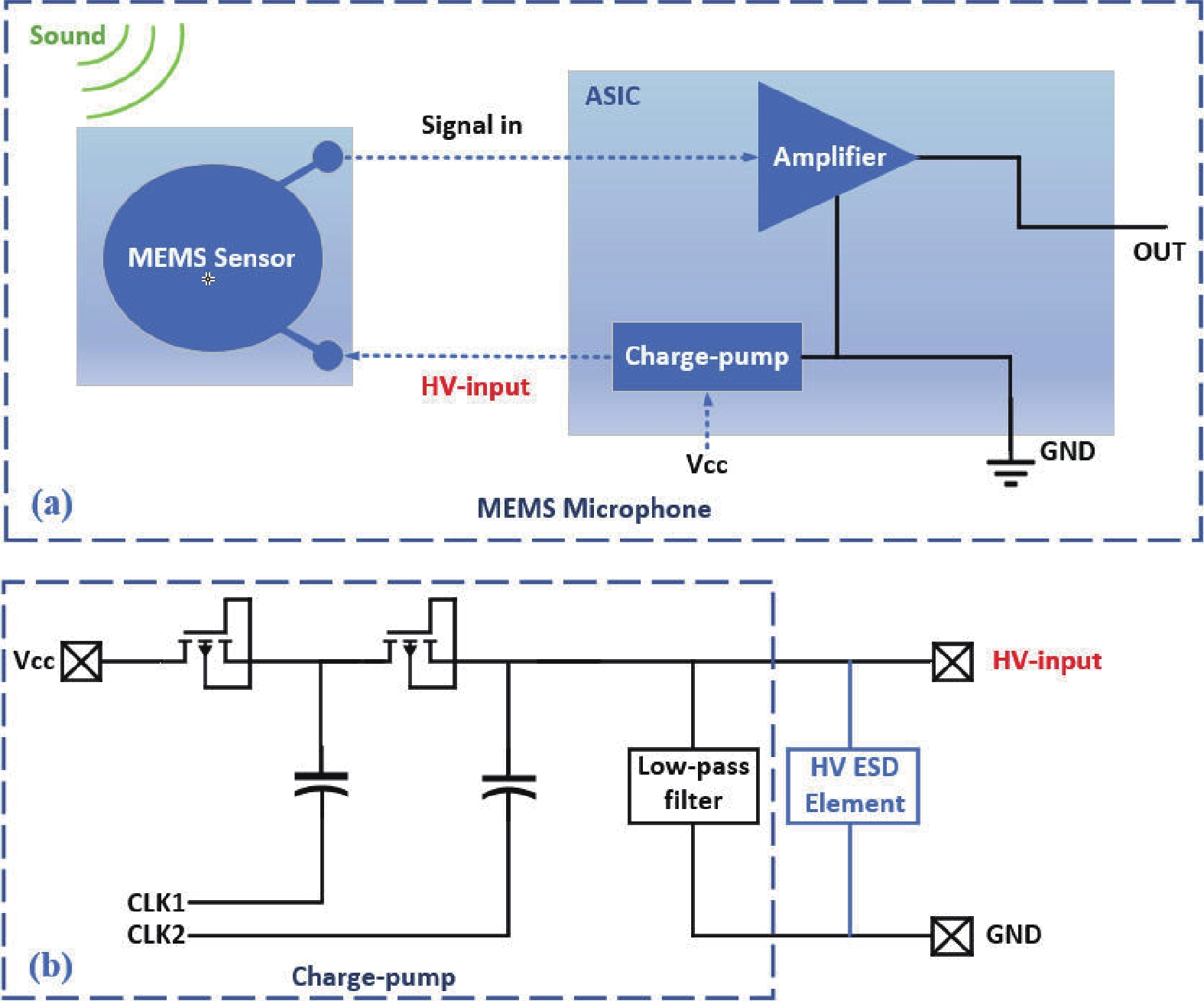

Fig. 1.
(Color online) (a) The circuit schematic diagram of the MEMS microphone. (b) The ESD application circuit of MEMS microphone.
DownLoad:
Article Navigation >
Journal of Semiconductors
>
2026
> Uncorrected proof
| Citation: |
Wei Liu, Yujie Liu, Zhixiang Cao, Yuxuan Yang, Haoxiang Li, Xiangliang Jin. A parallel dual-BJT enhanced SCR featuring high holding voltage and high-temperature stability for ESD protection of MEMS microphone readout ICs[J]. Journal of Semiconductors, 2026, In Press. doi: 10.1088/1674-4926/26010029
****
W Liu, Y J Liu, Z X Cao, Y X Yang, H X Li, and X L Jin, A parallel dual-BJT enhanced SCR featuring high holding voltage and high-temperature stability for ESD protection of MEMS microphone readout ICs[J]. J. Semicond., 2026, 47(11): 112301 doi: 10.1088/1674-4926/26010029
|
A parallel dual-BJT enhanced SCR featuring high holding voltage and high-temperature stability for ESD protection of MEMS microphone readout ICs
DOI: 10.1088/1674-4926/26010029
CSTR: 32376.14.1674-4926.26010029
More Information-
Wei Liu received the B.E. degree in Changsha University of Science & Technology. He is currently pursuing the M.S. degree at the School of Physics and Electronic Science, Hunan Normal University. His research interest focuses on on-chip electrostatic discharge protection design -
Xiangliang Jin received the M.S. degree from Hunan University in 2000 and the Ph.D. degree in microelectronics and solid-state circuits from the Institute of Microelectronics, Chinese Academy of Sciences, in 2004. He is currently a Full Professor and Xiaoxiang Scholar at Hunan Normal University and Director of the Key Laboratory of Physics and Devices in the Post-Moore Era of Hunan Province. His research interests include micro/nanoelectronic devices and integration, optoelectronics, electrostatic discharge protection, and memristors - Corresponding author: jinxl@hunnu.edu.cn
- Revised Date: 2026-05-27 Available Online: 2026-08-07
-
Abstract

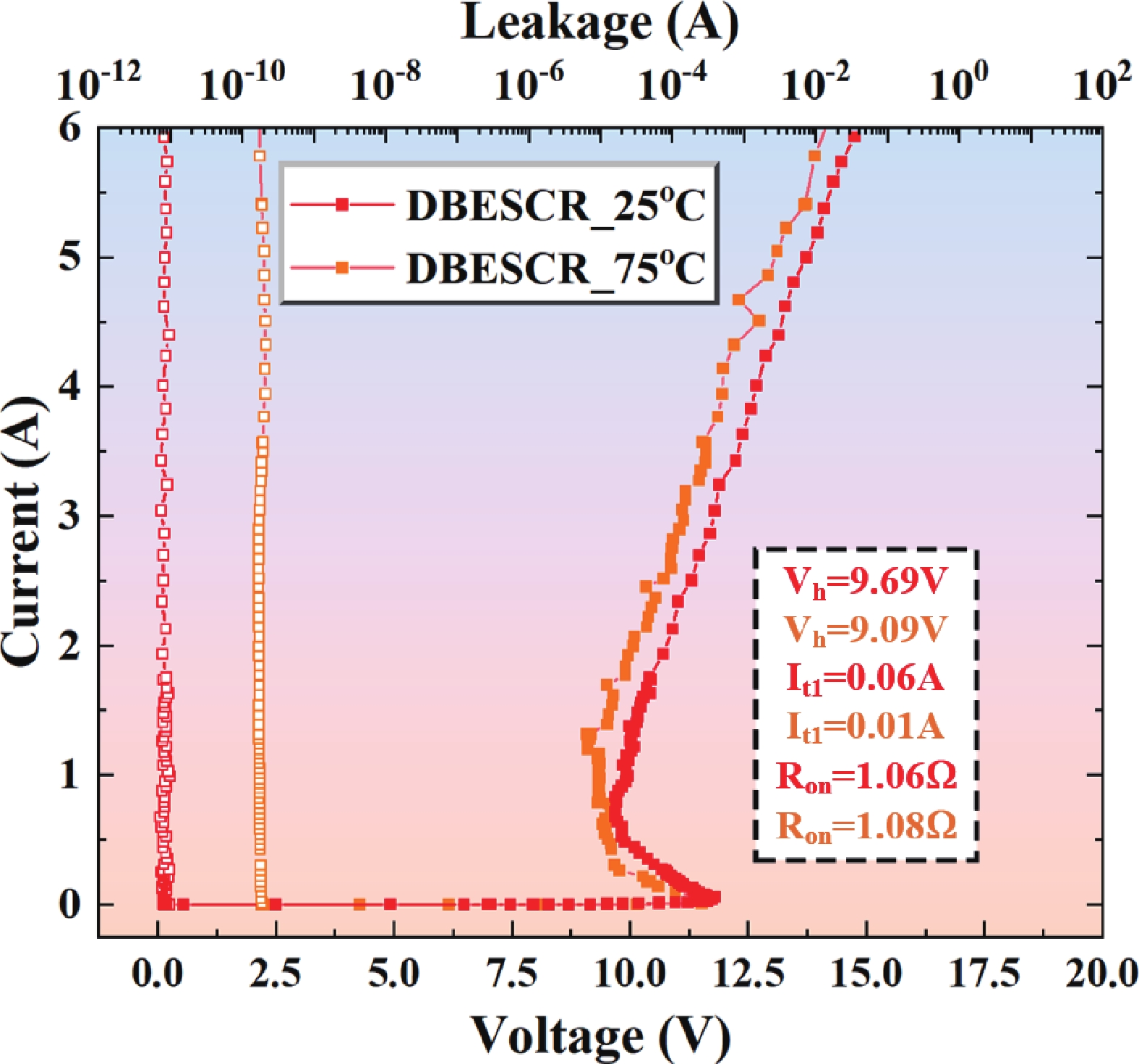

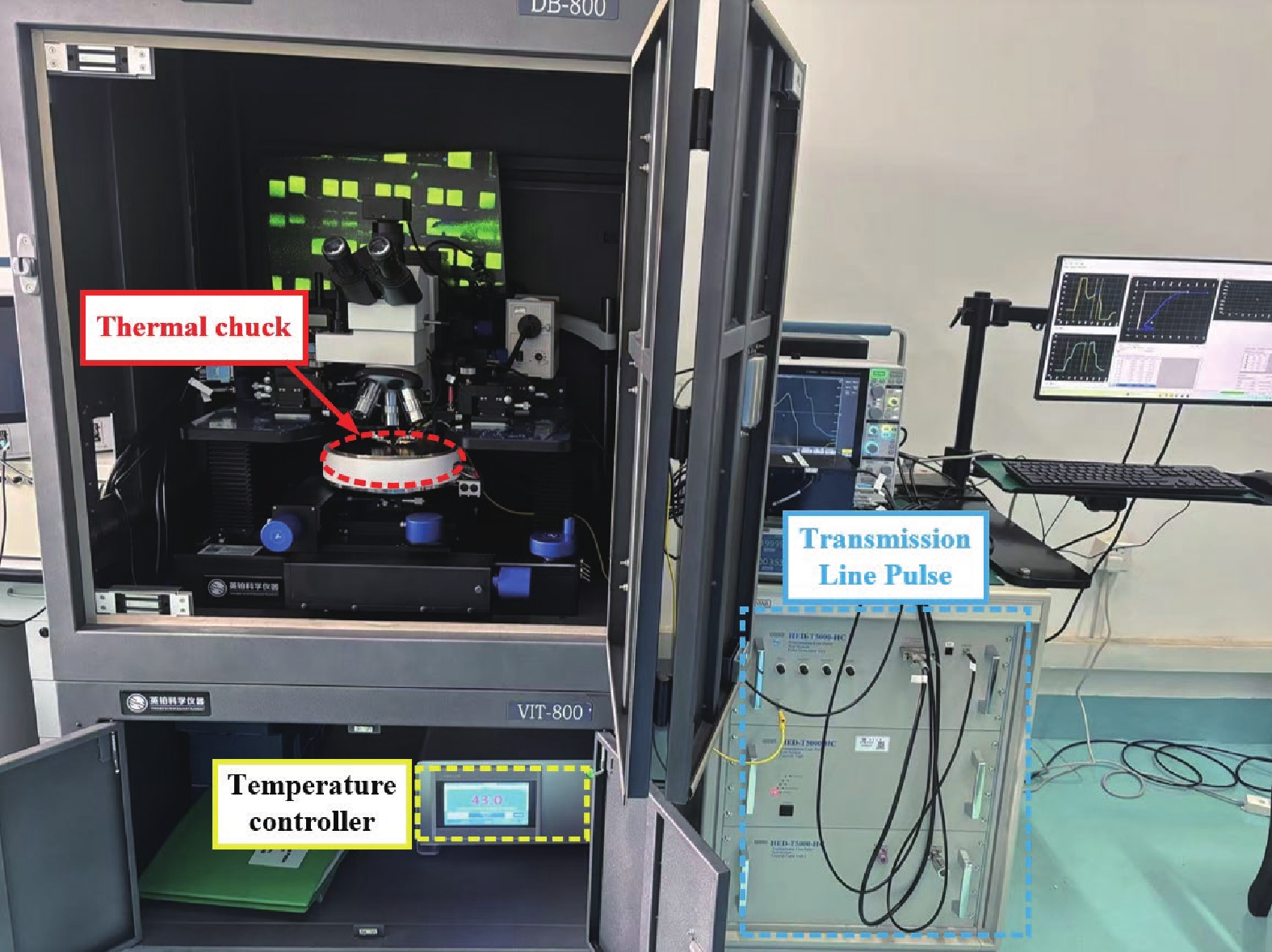

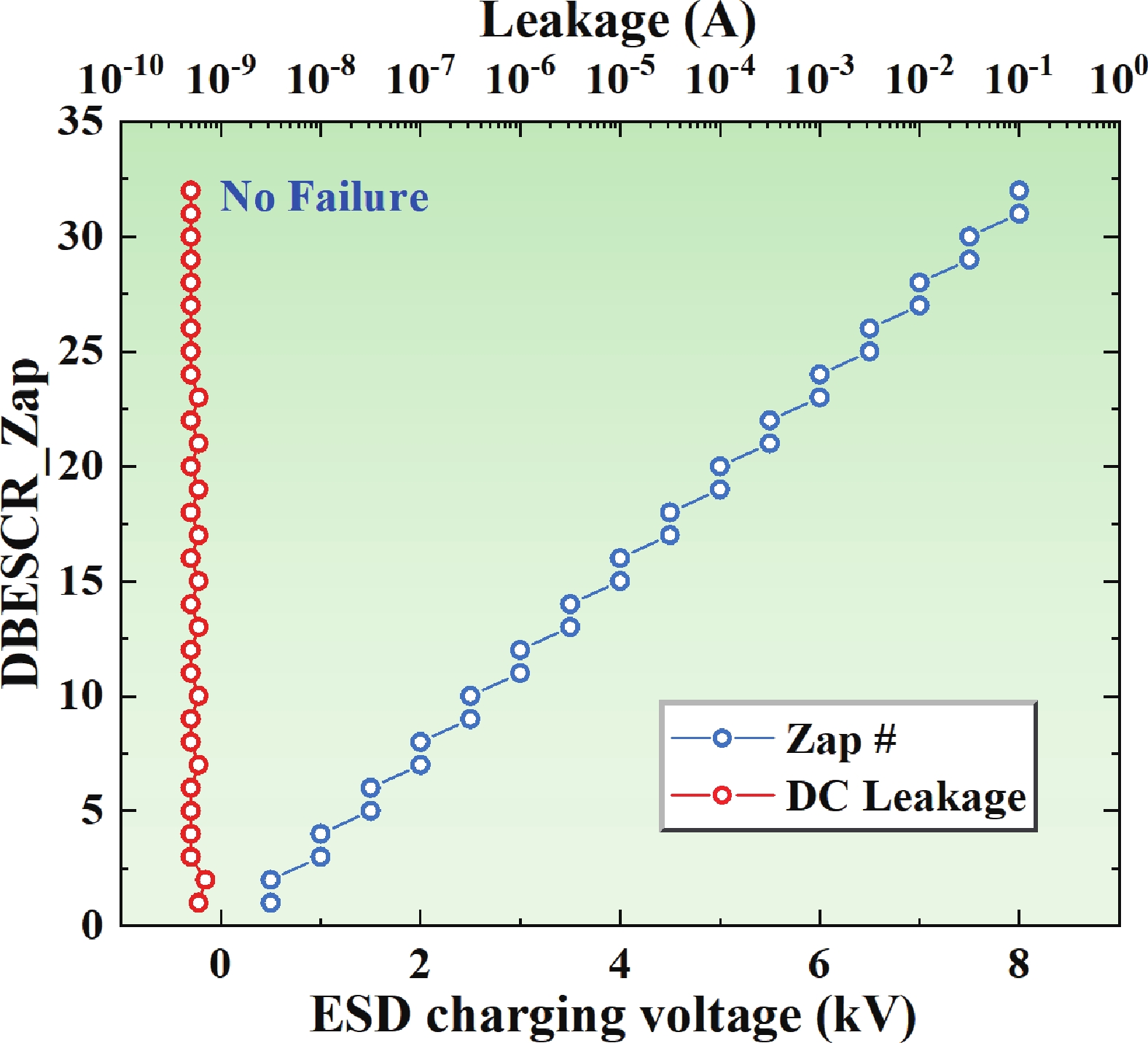

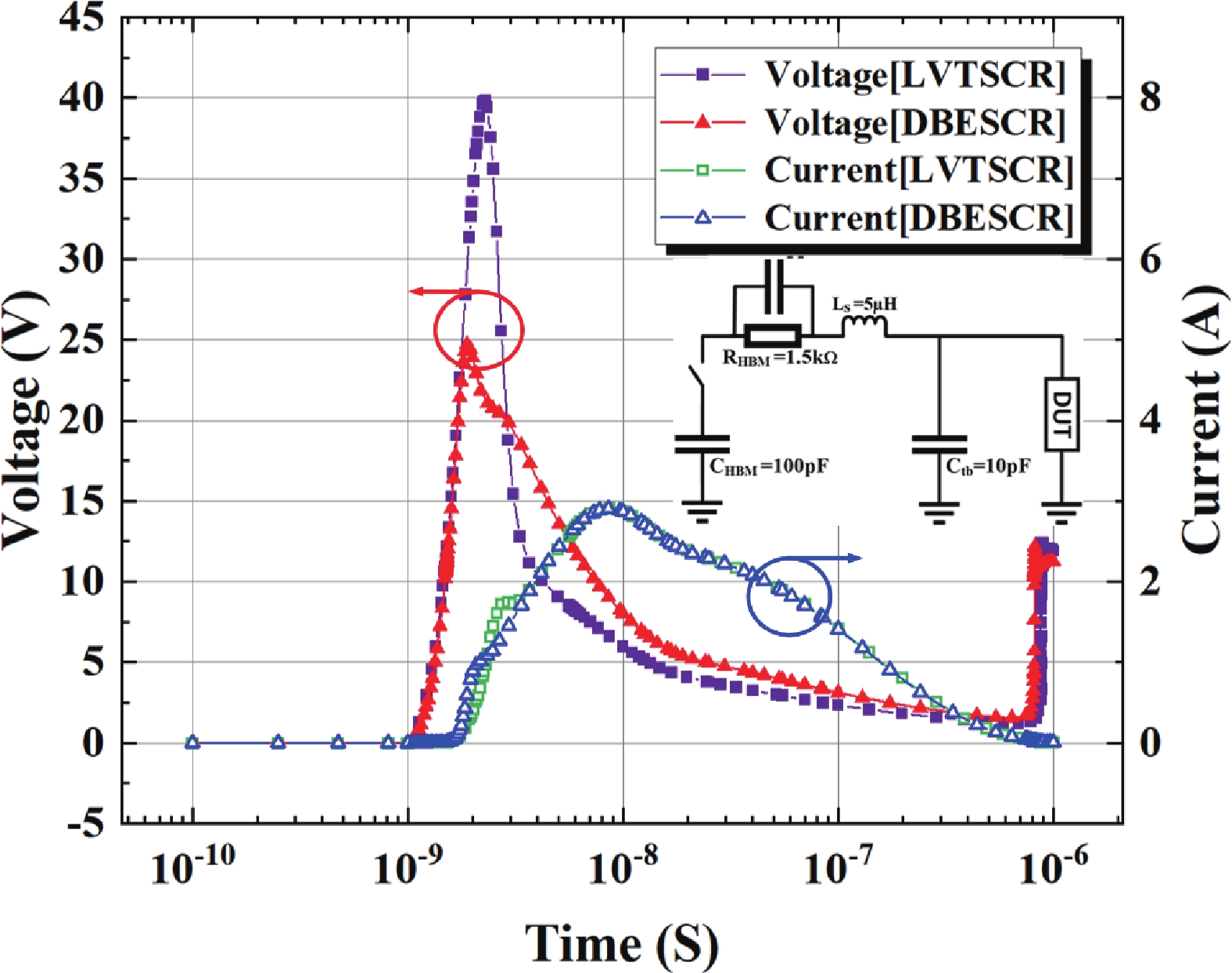

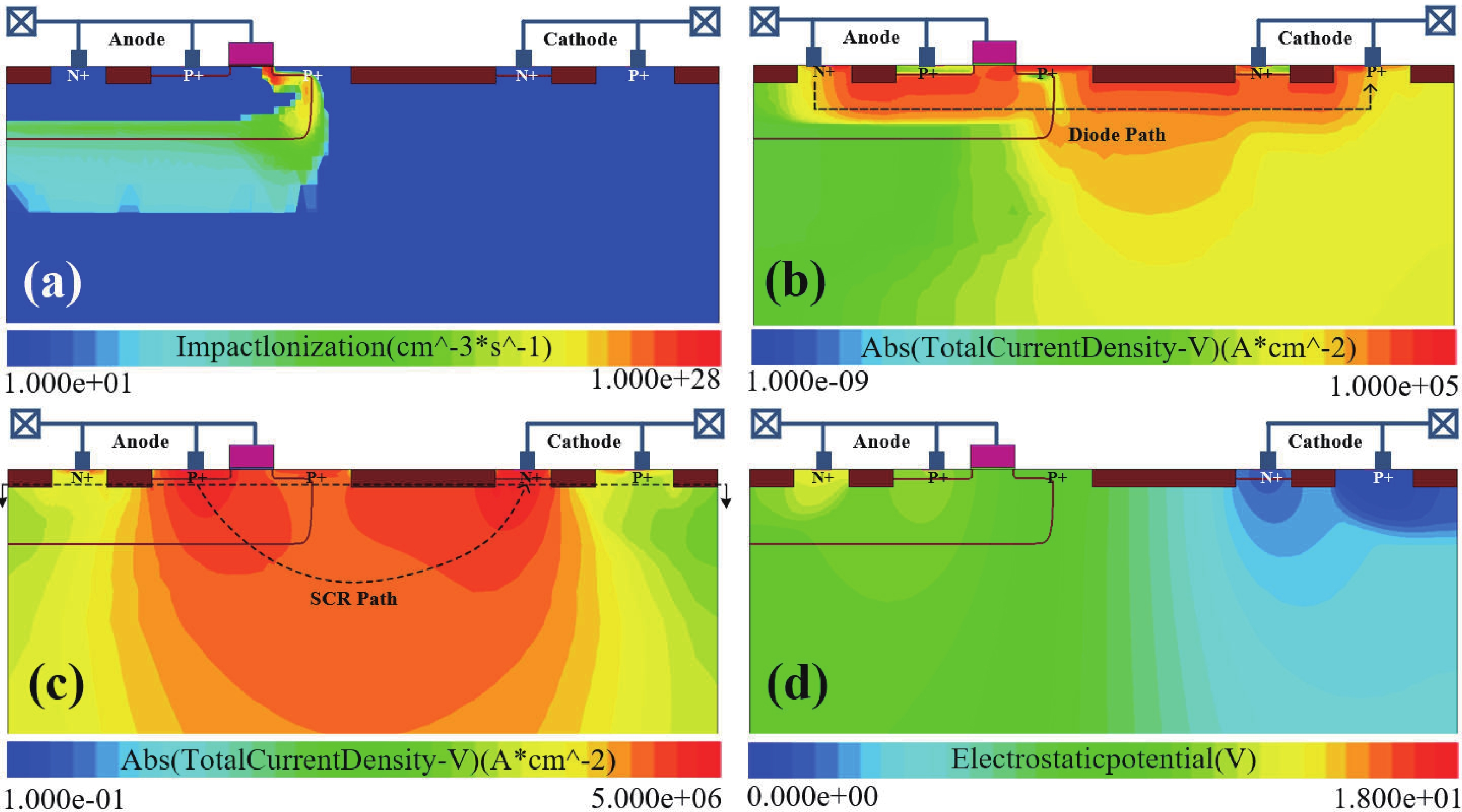

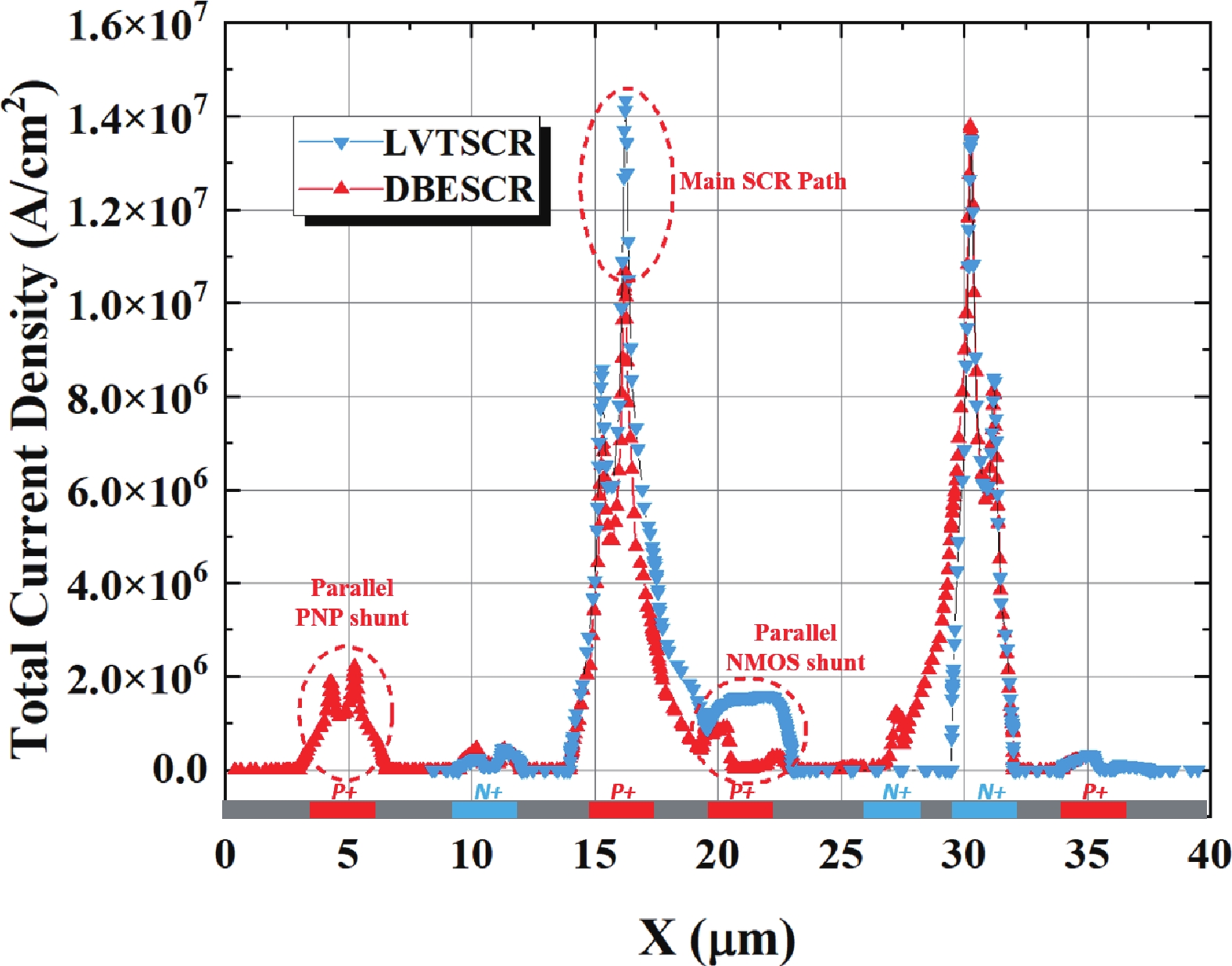

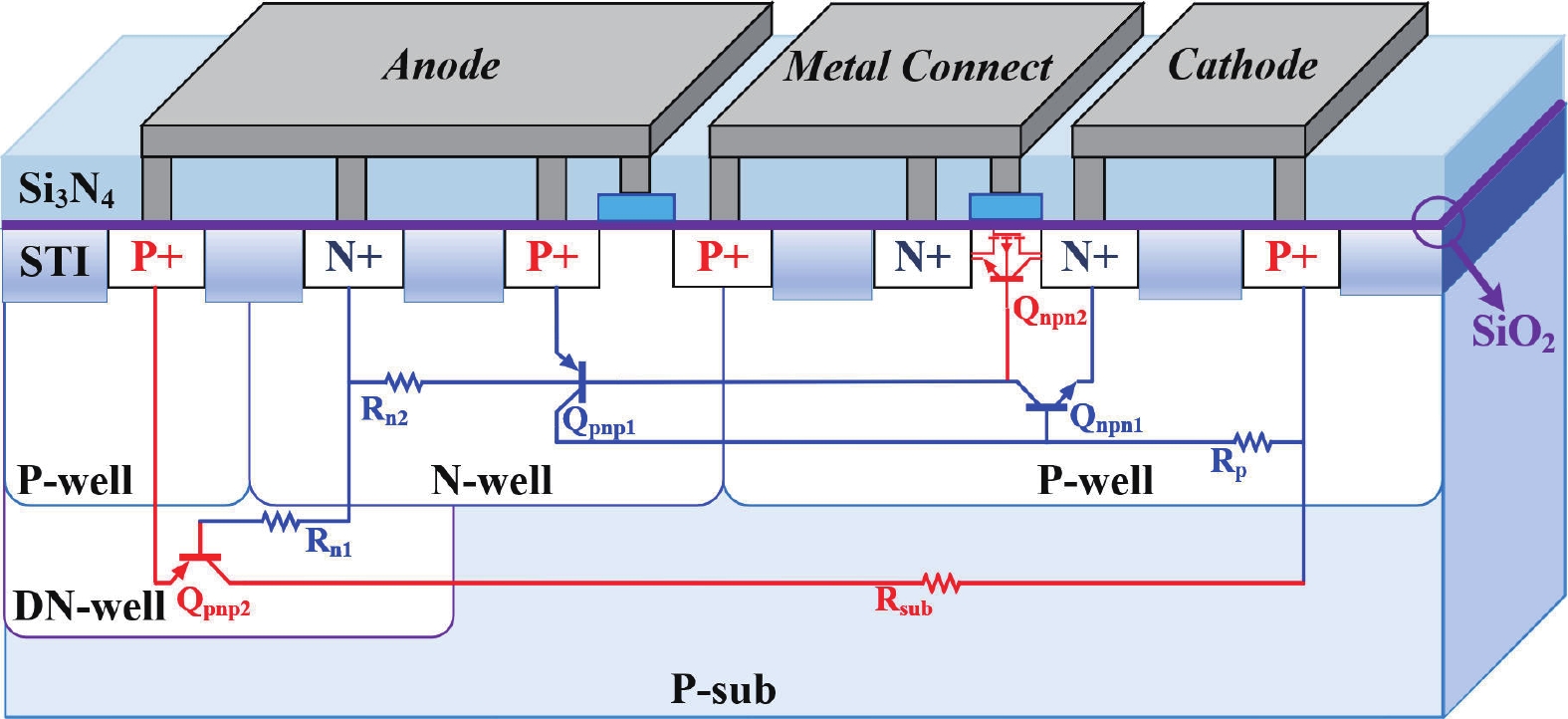

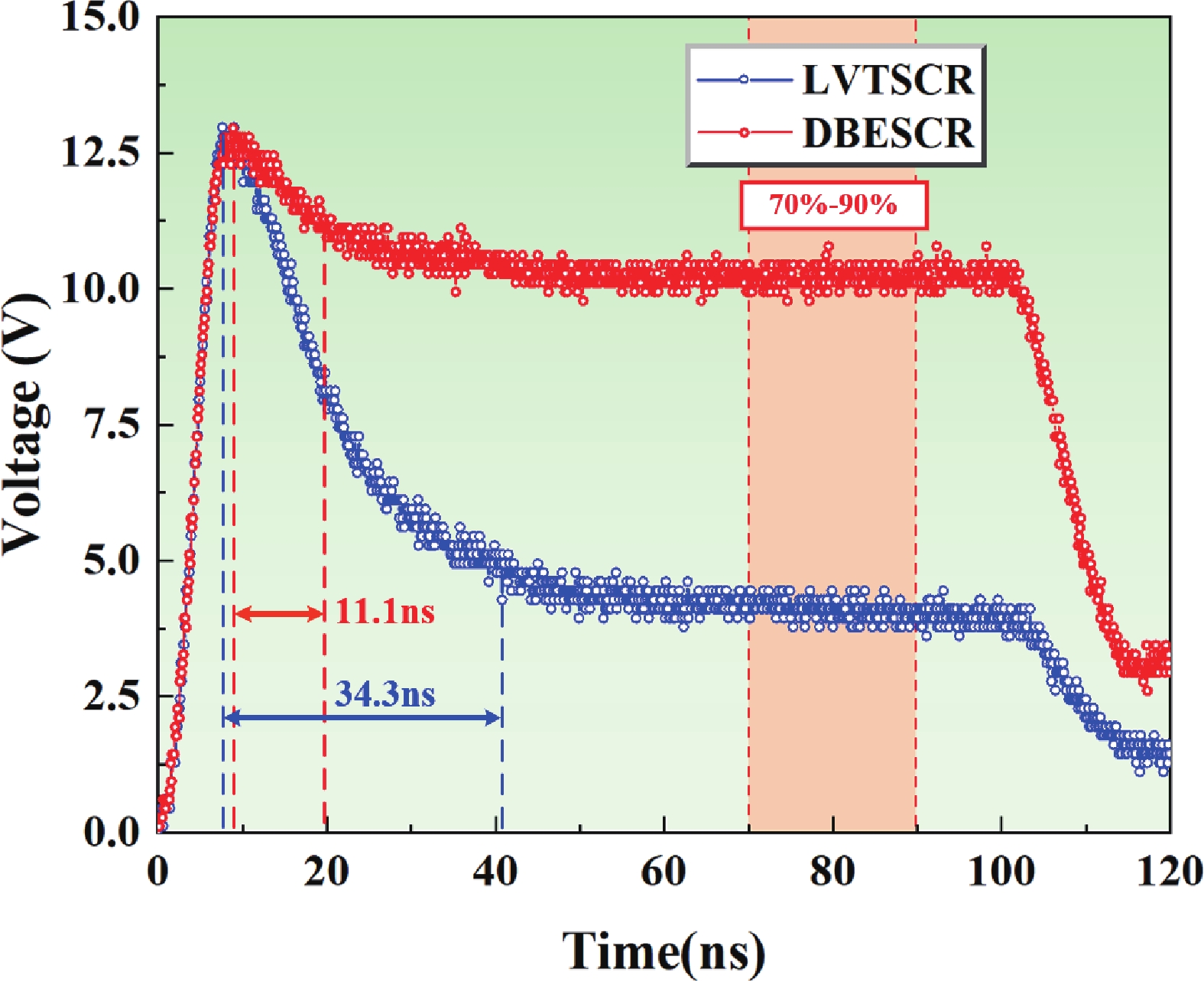

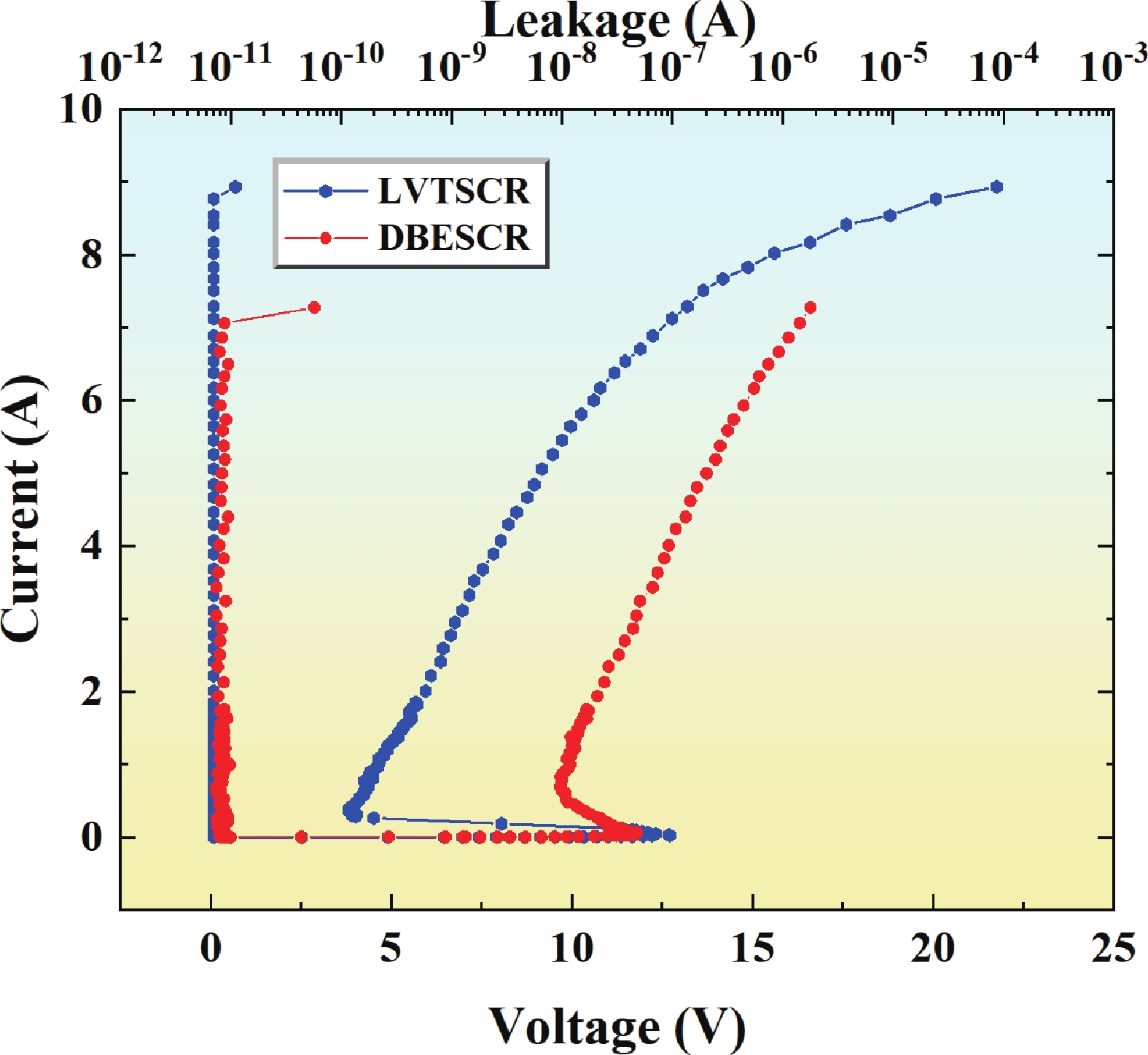

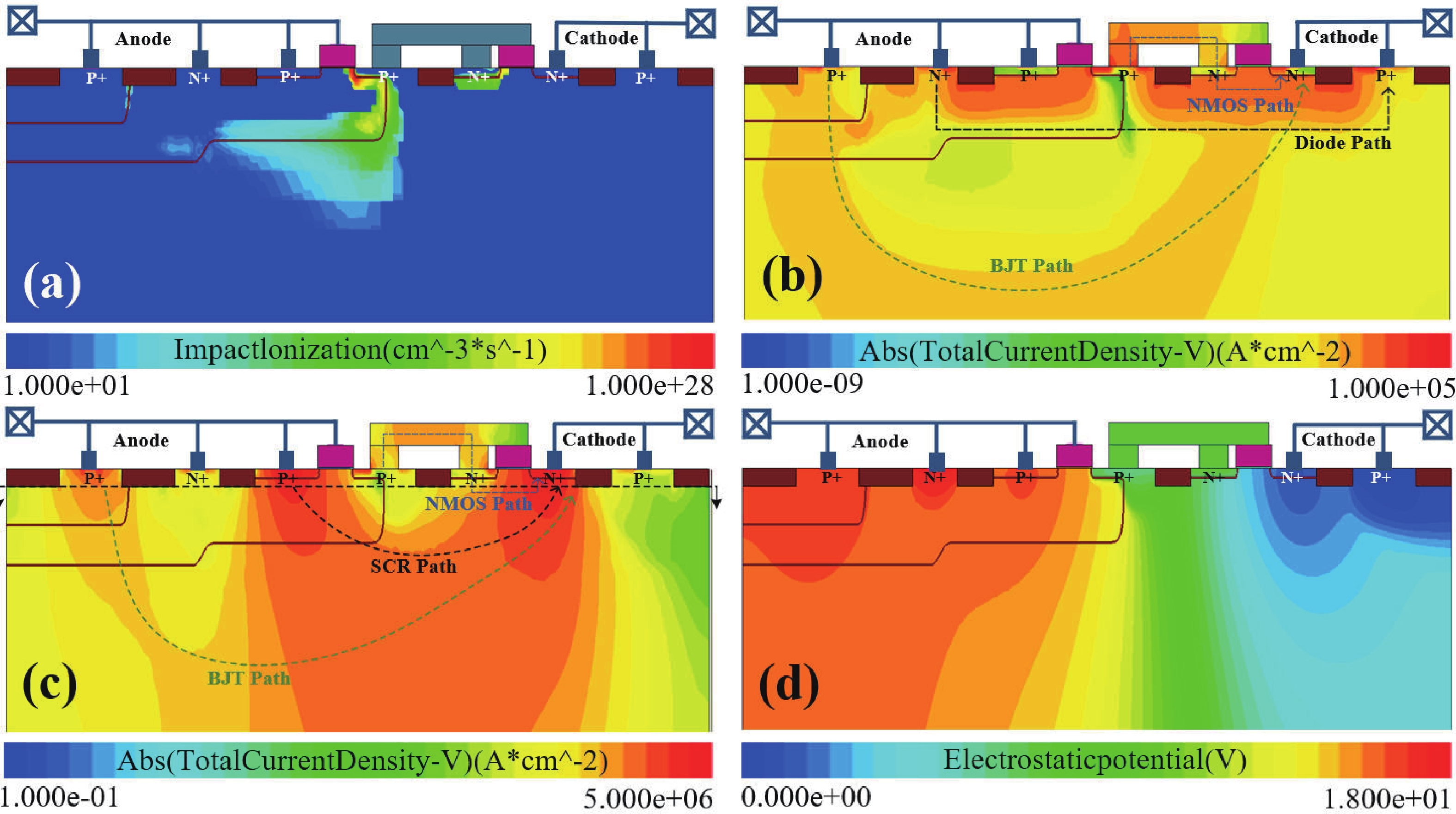

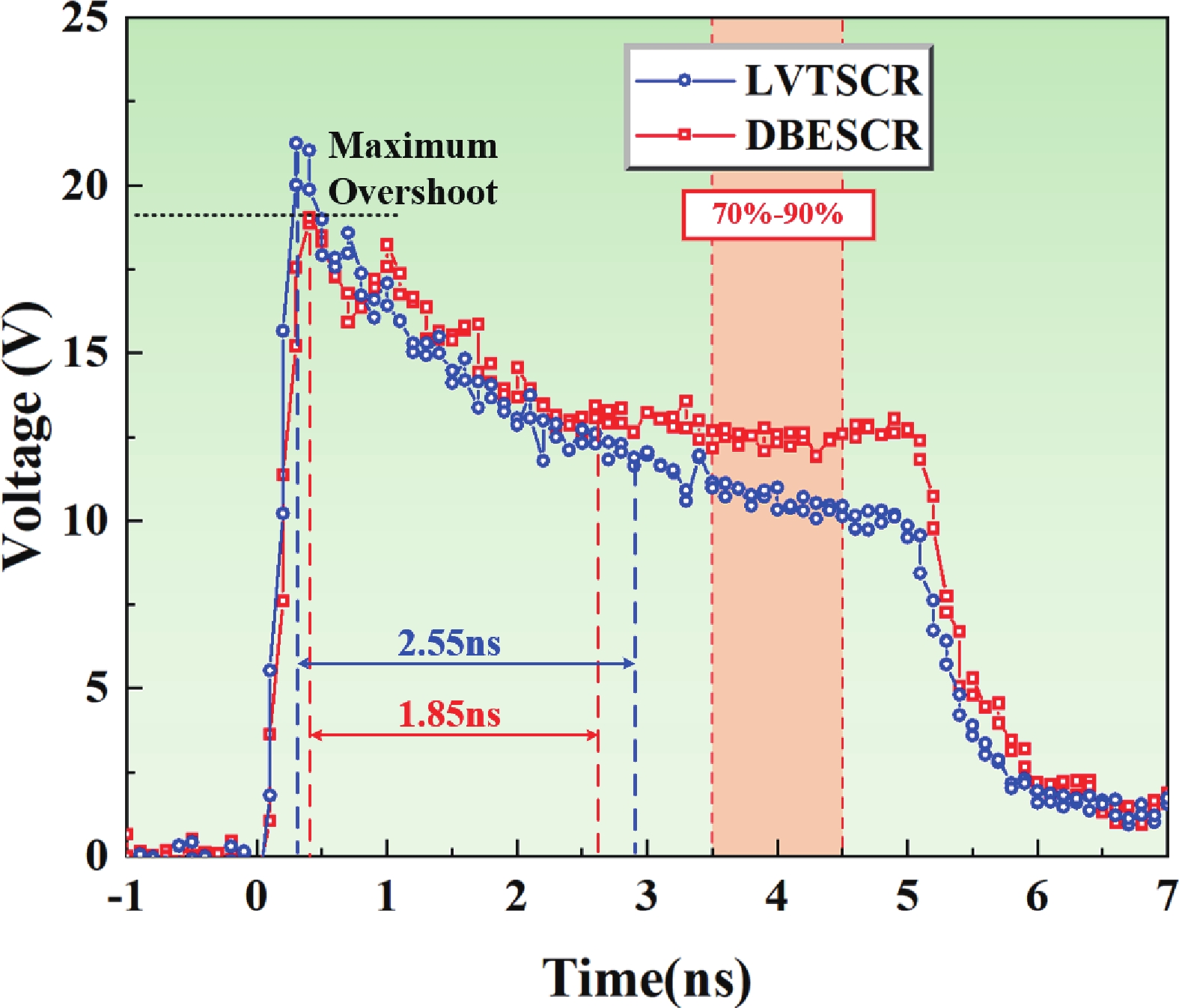

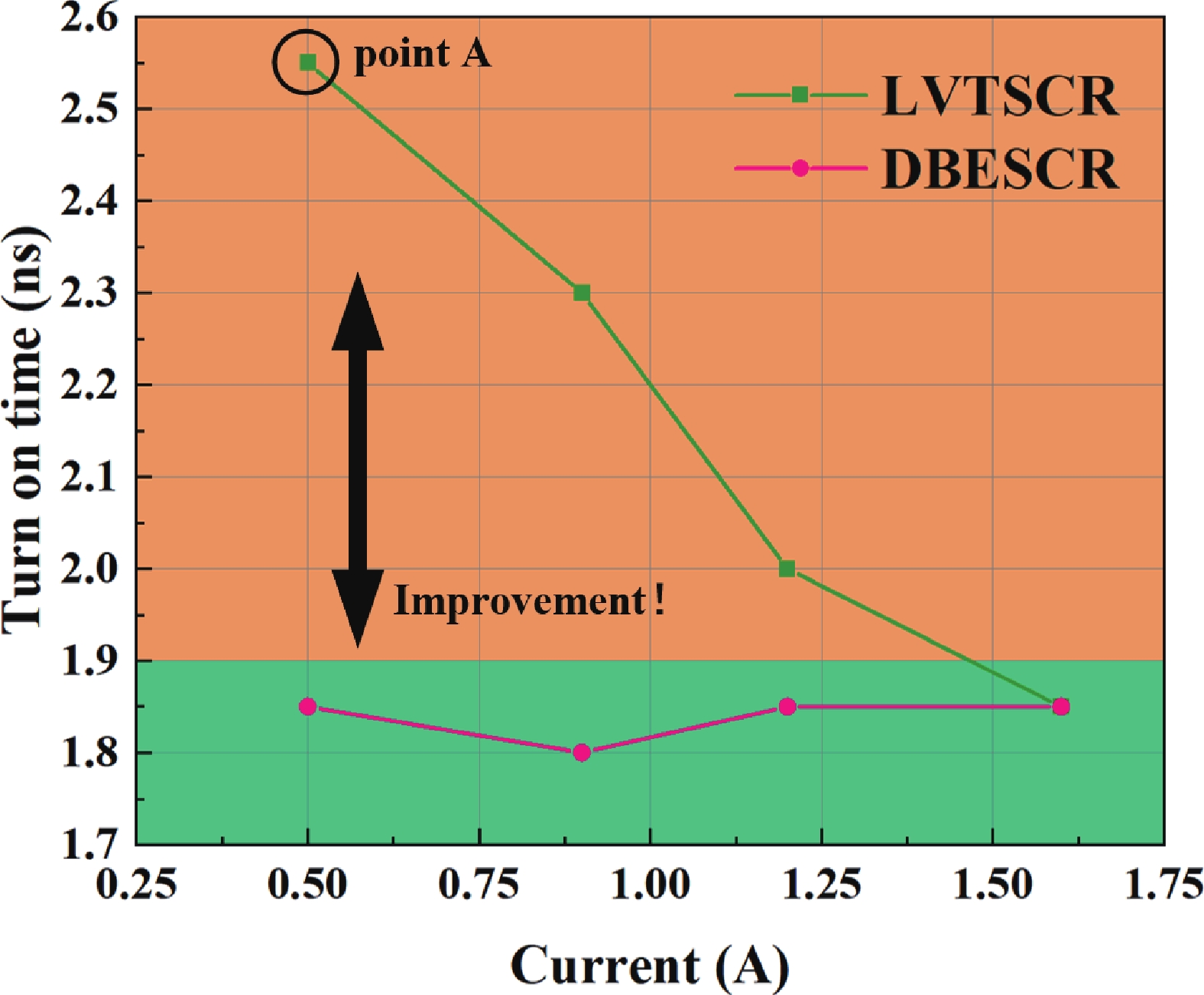

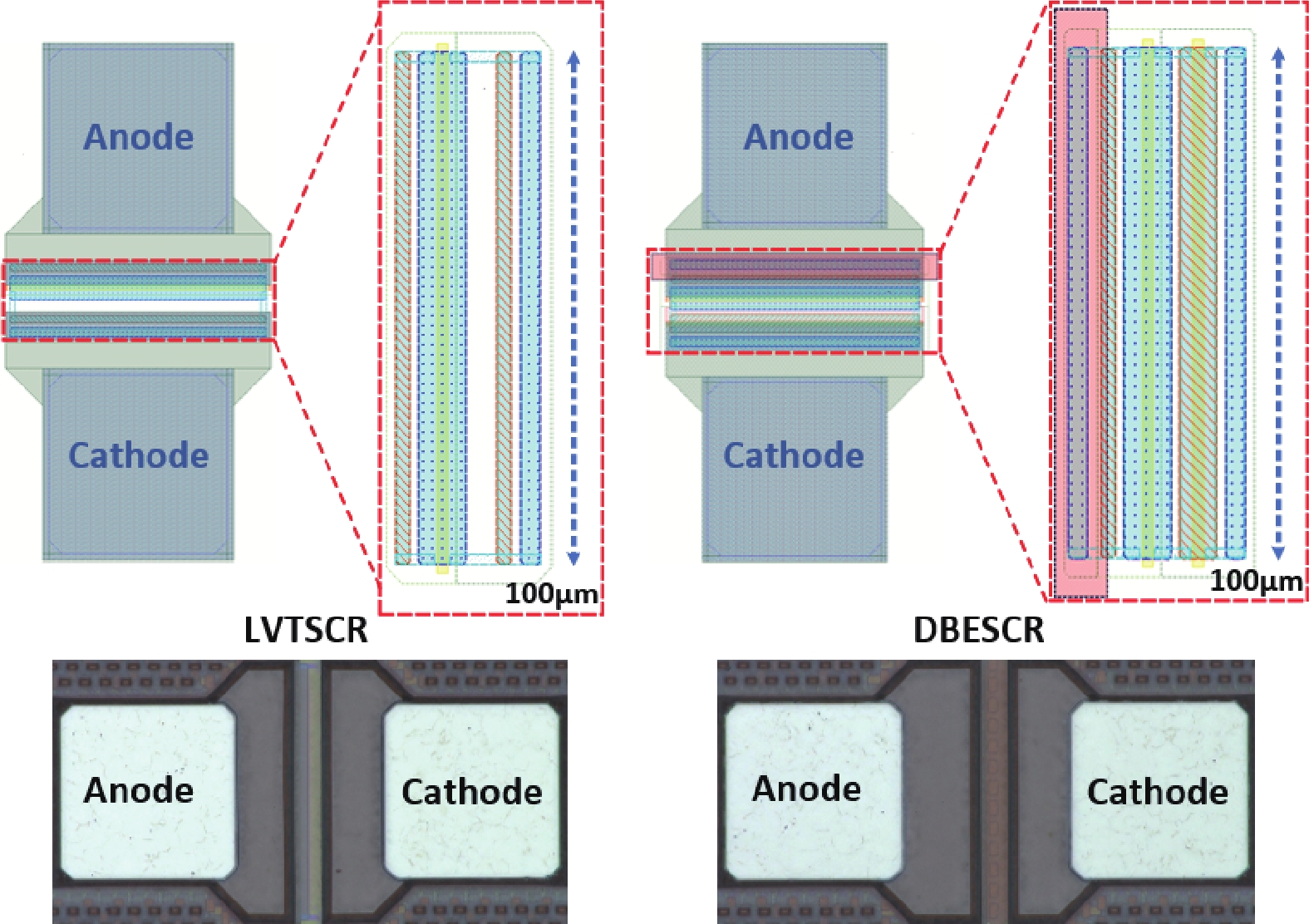

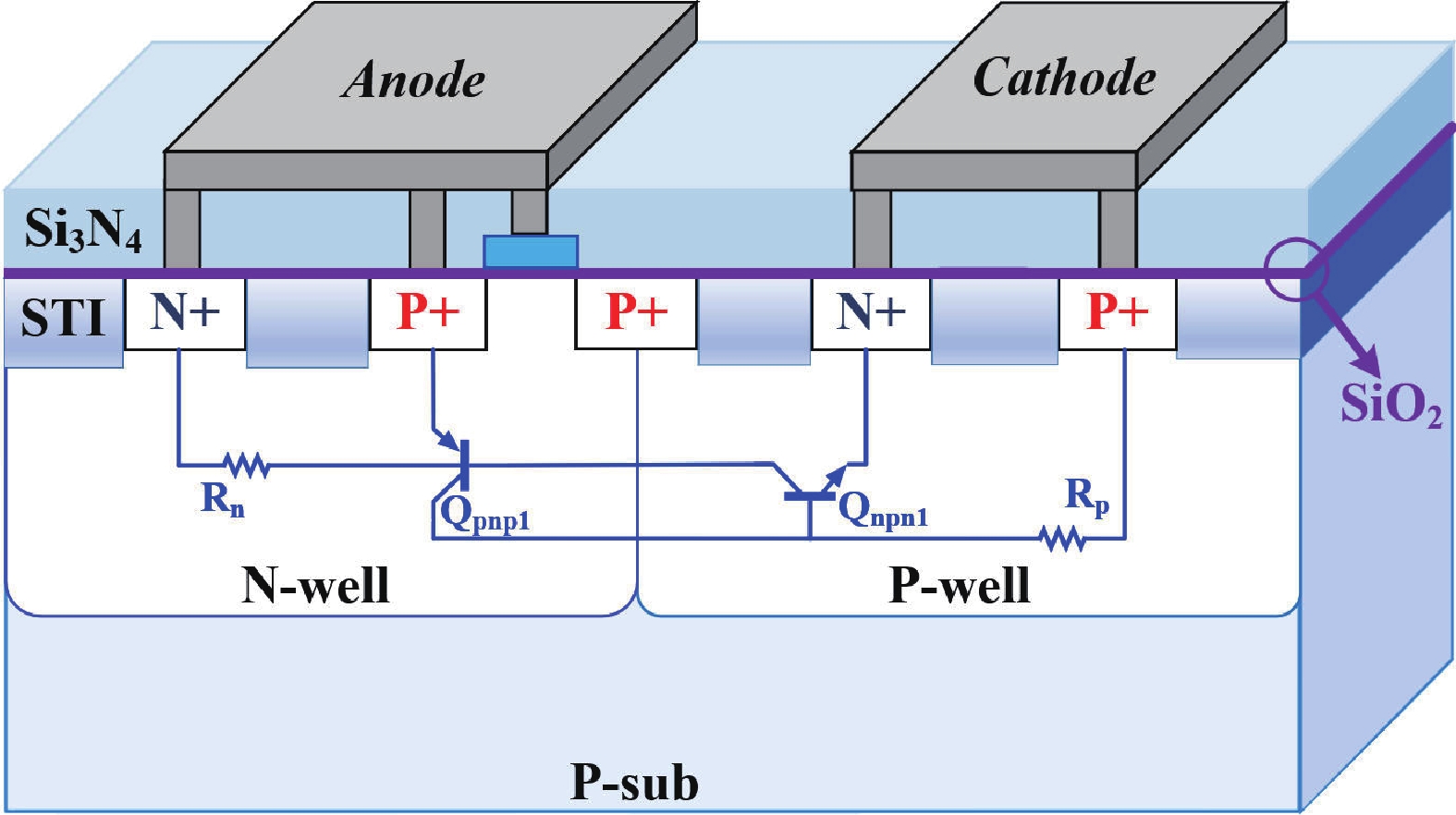

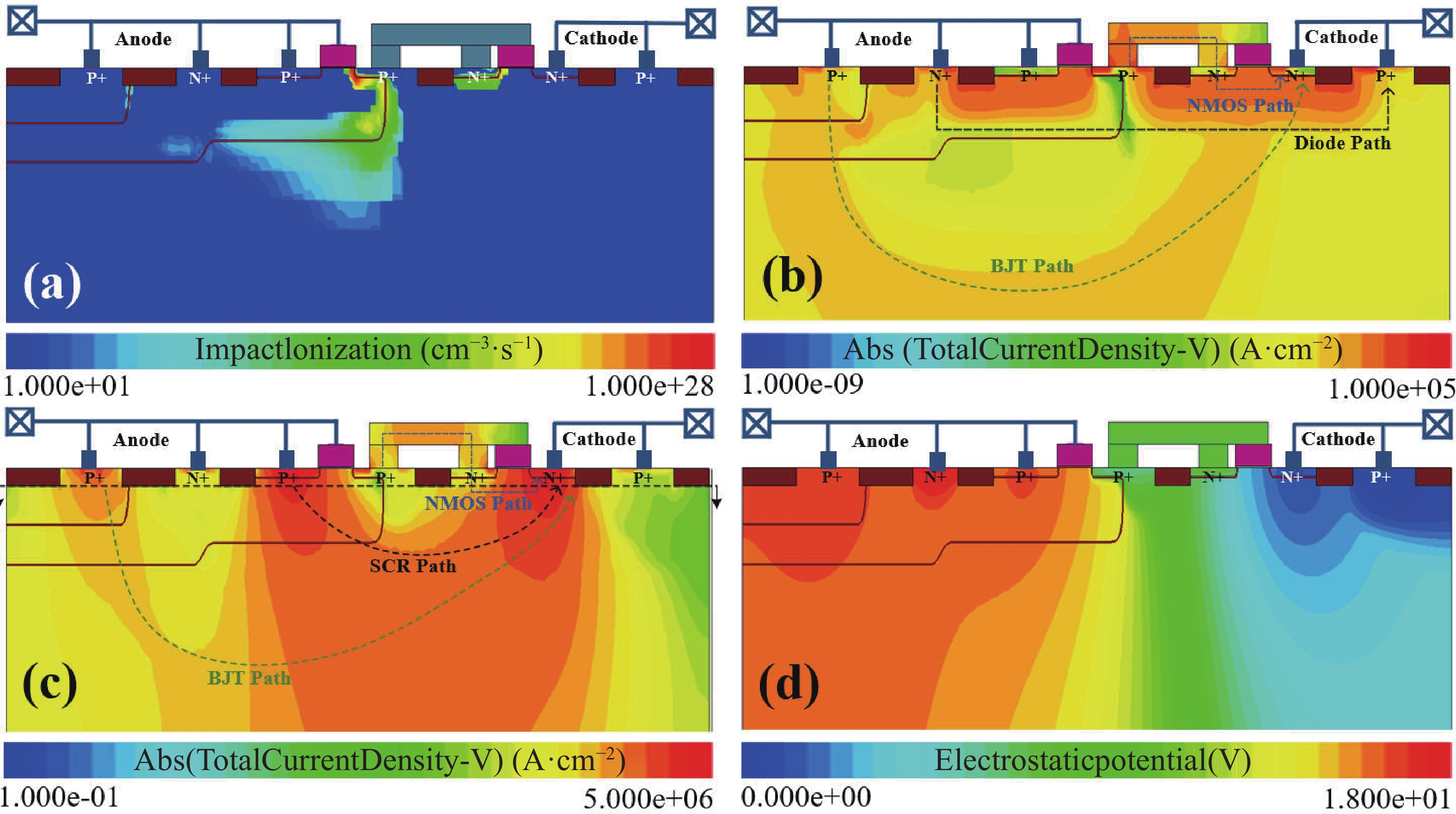

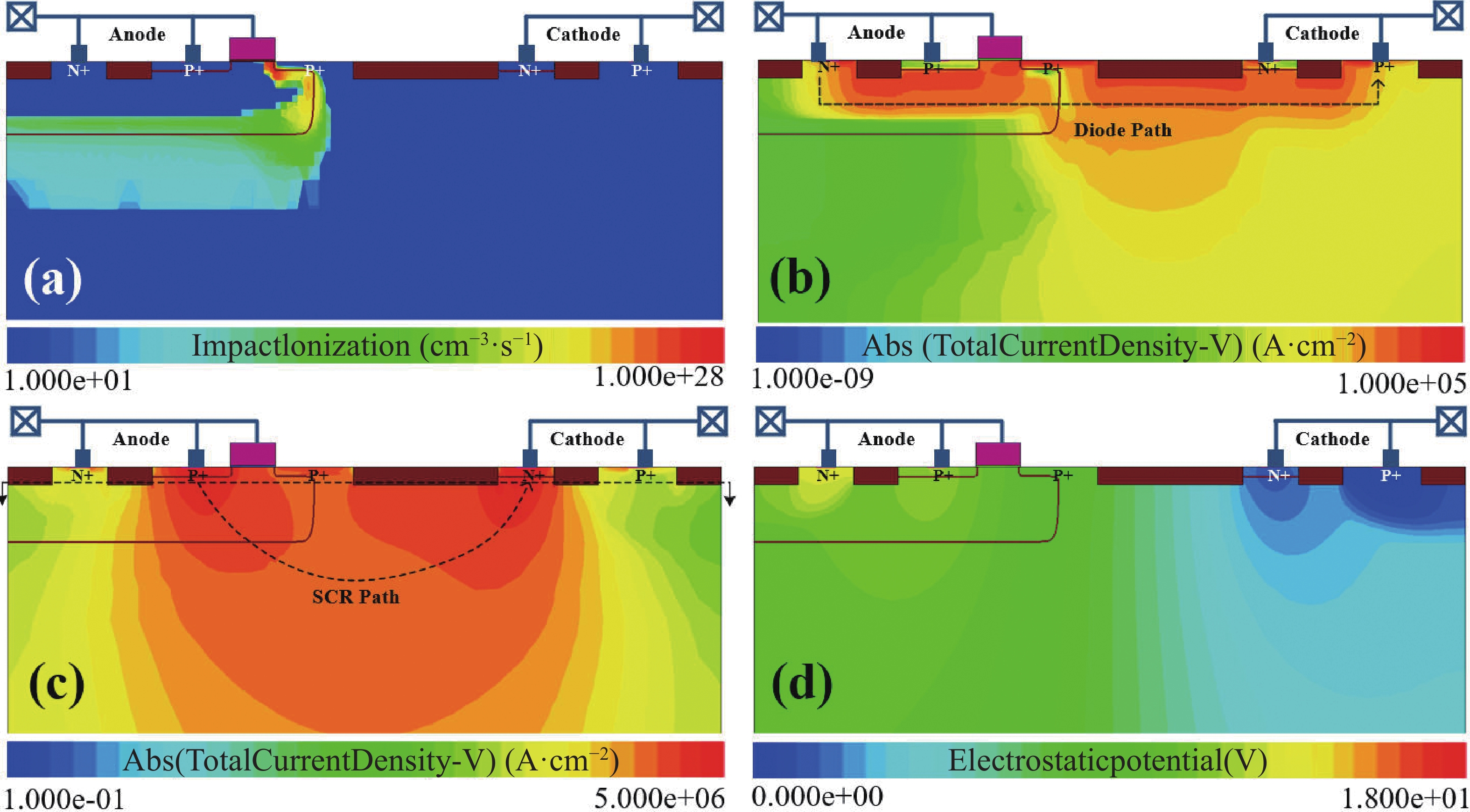

In the readout circuit of micro-electromechanical systems (MEMS) microphones, the high-voltage pins of charge pumps necessitate electrostatic discharge (ESD) protection designs featuring high holding voltage and high-temperature tolerance. Traditional ESD solutions cannot effectively meet the requirement. Accordingly, this paper proposes a parallel dual-BJT enhanced silicon-controlled rectifier (DBESCR) structure, which is verified in a 0.18 µm Bipolar-CMOS-DMOS (BCD) process. By incorporating a parallel dual-BJT shunt design based on the low-voltage-triggered silicon-controlled rectifier (LVTSCR), the holding voltage is effectively enhanced without a significant increase in chip area. Transmission line pulse (TLP) test results demonstrate that the DBESCR device achieves a trigger voltage of 11.8 V and a high holding voltage of 9.69 V. At an elevated temperature of 75 °C, the structure maintains a picoamperes-level leakage current, and the ESD performance of the device does not degrade noticeably. The proposed DBESCR fully meets the 9 V ESD protection design requirements for charge pumps in MEMS microphone readout circuits and exhibits ESD robustness exceeding 8 kV under the human body model (HBM). -
References
[1] Wang L, Zhong L J, Zhu Z M. A 132 dBSPL 67.34 dB-a SNR single-ended MEMS microphone using self-adaption loop with 1.5-V supply voltage. IEEE Trans Circuits Syst I Regul Pap, 2025, 72(9): 4560 doi: 10.1109/TCSI.2025.3528732[2] Liang H L, Bi X W, Gu X F, et al. Investigation on LDMOS-SCR with high holding current for high voltage ESD protection. Microelectron Reliab, 2016, 61: 120 doi: 10.1016/j.microrel.2016.01.016[3] Dai C T, Ker M D. ESD protection design with stacked high-holding-voltage SCR for high-voltage pins in a battery-monitoring IC. IEEE Trans Electron Devices, 2016, 63(5): 1996 doi: 10.1109/TED.2016.2544382[4] Wu Z X, Wang Y, Ji S X, et al. Weak snapback silicon controlled rectifier ESD device with double snapback characteristics. IEEE Trans Device Mater Relib, 2025, 25(3): 401 doi: 10.1109/TDMR.2025.3571056[5] Du F B, Song W Q, Hou F, et al. Augmented DTSCR with fast turn-on speed for nanoscale ESD protection applications. IEEE Trans Electron Devices, 2020, 67(3): 1353. doi: 10.1109/TED.2020.2965092[6] Bi X W, Liang H L, Gu X F, et al. Design of novel DDSCR with embedded PNP structure for ESD protection. J Semicond, 2015, 36(12): 124007 doi: 10.1088/1674-4926/36/12/124007[7] Wu J W, Yu Z G, Hong G S, et al. Design of GGNMOS ESD protection device for radiation-hardened 0.18 μm CMOS process. J Semicond, 2020, 41(12): 122403 doi: 10.1088/1674-4926/41/12/122403[8] Liu J Z, Liu Z W, Jia Z, et al. A novel DTSCR with a variation lateral base doping structure to improve turn-on speed for ESD protection. J Semicond, 2014, 35(6): 064010 doi: 10.1088/1674-4926/35/6/064010[9] Song W Q, Chen R B, Tong Z, et al. Robust silicon-controlled rectifier with high-holding voltage for on-chip electrostatic protection. IEEE Trans Electron Devices, 2022, 69(2): 696 doi: 10.1109/TED.2021.3131536[10] Chen R B, Liu H X, Yan C, et al. Gate-controlled LVTSCR for high-voltage ESD protections in advanced CMOS processes. IEEE Trans Electron Devices, 2023, 70(4): 1566 doi: 10.1109/TED.2023.3244765[11] Ker M D, Hsu K C. Overview of on-chip electrostatic discharge protection design with SCR-based devices in CMOS integrated circuits. IEEE Trans Device Mater Reliab, 2005, 5(2): 235 doi: 10.1109/TDMR.2005.846824[12] Song B, Koo Y. Low Ron and high robustness ESD protection design for low-voltage power clamp application. Electron Lett, 2016, 52(18): 1554 doi: 10.1049/el.2016.2391[13] Qi Z, Li J K, Chen H Q, et al. Novel high-holding-voltage shunt-triggered SCR for robust ESD protection. IEEE Electron Device Lett, 2025, 46(10): 1673 doi: 10.1109/LED.2025.3598828[14] Lim M C, Eom Y B, Choi J C, et al. Novel SCR device for ESD protection with high-holding voltage in 0.18um BCD process. in Proc EDTM, 2023: 1[15] Hung C Y, Kao T C, Lee J H, et al. Simple scheme to increase hold voltage for silicon-controlled rectifier. Electron Lett, 2014, 50(3): 200 doi: 10.1049/el.2013.1853[16] Do K I, Koo Y S. A new SCR structure with high holding voltage and low ON-resistance for 5-V applications. IEEE Trans Electron Devices, 2020, 67(3): 1052 doi: 10.1109/TED.2020.2963994[17] Yang Z N, Qi C L, Fu D B, et al. Modified low-voltage triggered silicon-controlled rectifier for ESD protection. IEEE Electron Device Lett, 2024, 45(5): 746 doi: 10.1109/LED.2024.3370172[18] Wang Y, Zhang K, Liu Y J, et al. A dual-direction SCR featuring shallow snapback and high-temperature robustness for ESD protection of industrial communication buses. IEEE Trans Electron Devices, 2025, 72(11): 5838 doi: 10.1109/TED.2025.3608742[19] Wang Y, Zhong Z Y, Jin X L, et al. A high-voltage dual direction silicon-controlled rectifier based on flexible stacking strategy. IEEE Trans Electron Devices, 2025, 72(4): 2086 doi: 10.1109/TED.2025.3544975[20] Liang H L, Cao X Y, Liu J L, et al. A novel dual-direction SCR embedded with segmental and cross-bridge topology for high-voltage ESD protection. IEEE Trans Electron Devices, 2023, 70(8): 4036 doi: 10.1109/TED.2023.3284416[21] Dai C T, Ker M D. Comparison between high-holding-voltage SCR and stacked low-voltage devices for ESD protection in high-voltage applications. IEEE Trans Electron Devices, 2018, 65(2): 798 doi: 10.1109/TED.2017.2785121[22] Liu Y J, Wang Y, Zhang K, et al. A novel SCR topology of embedded bipolar transistor with high-holding voltage and high-temperature tolerance for ESD protection. IEEE Trans Electron Devices, 2025, 72(9): 4635 doi: 10.1109/TED.2025.3586260 -
